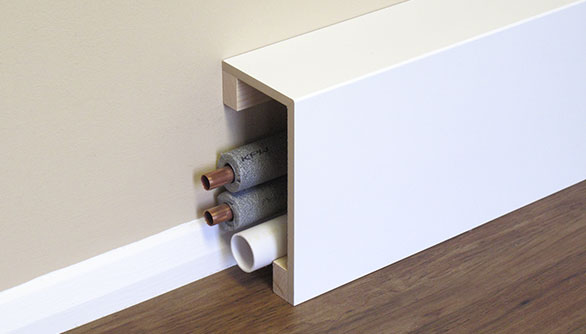

Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

Manufactured to order from high quality, 9mm FSC® certified moisture resistant MDF, our two-sided ‘L’ shaped pipe boxings are a widely used solution for concealing a diverse range of horizontal or vertical plumbing services.

These include fire sprinkler system, heating and radiator pipework, as well as heat recovery and extraction ducting. Interior distributed heating system pipework, mains water supply and larger diameter waste pipes are also common applications.

Available in a comprehensive range of profile sizes and in either 2440mm or 3050mm length options, our pipe boxings are supplied as standard in an easy clean white painted finish.

If required, the pipe boxings can also be supplied with a ‘two-coat’ undercoat only option for colour matching and blending in with the surrounding decoration on-site.

Installation is a simple and straightforward process that requires only two timber battens, which are fixed to the wall or floor, allowing the pipe boxings to then be secured to the battens with screws and white caps.

A full range of dedicated accessories is available, which includes internal and external corners, joint covers and stop ends. Screws, caps and mastic sealant can also be purchased when ordering products to further simplify installation.

Our two-sided ‘L’ shaped pipe boxings are manufactured from moisture resistant FSC® certified MDF. By using materials from sustainable and managed sources our products are not only covered by Forest Stewardship Council certification, but they also help specifiers, contractors and buyers comply readily with their own sustainable procurement policies.

, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

 Table of sizes – All dimensions in mm

Depth Height
50 100 125 150 200 250 300 350 400 450 500
75 100 125 150 200 250 300 350 400 450 500
100 100 125 150 200 250 300 350 400 450 500
125   125 150 200 250 300 350 400 450 500
150     150 200 250 300 350 400 450 500
200       200 250 300 350 400 450 500
250         250 300 350 400 450 500
300           300 350 400 450 500
  • Profiles available in either 2440mm or 3050mm lengths
  • Sizes shown are external
  • Material thickness 9mm
, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings
Accessories
, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

External Corner

, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

Internal Corner

, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

Joint Cover

, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

Stop End

, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

Battens

, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

Fixing Screws

, Two-sided ‘L’ Shaped Pipe & Fire Sprinkler Boxings

Screw Caps & Washers
