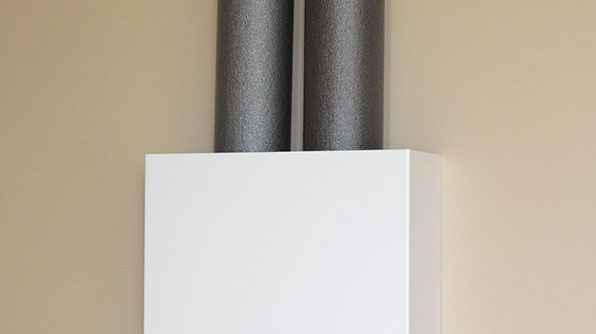

Manufactured to order from high quality, 9mm FSC® certified moisture resistant MDF, our three-sided ‘U’ shaped pipe boxings are a widely used solution for concealing a diverse range of horizontal or vertical plumbing services.
Manufactured to order from high quality, 9mm FSC® certified moisture resistant MDF, our three-sided ‘U’ shaped pipe boxings are a widely used solution for concealing a diverse range of horizontal or vertical plumbing services.
These include fire sprinkler system, heating and radiator pipework, as well as heat recovery and extraction ducting. Interior distributed heating system pipework, mains water supply and larger diameter waste pipes are also common applications.
Available in a comprehensive range of profile sizes and in either 2440mm or 3050mm length options, our pipe boxings are supplied as standard in an easy clean white painted finish.
If required, the pipe boxings can also be supplied with a ‘two-coat’ undercoat only option for colour matching and blending in with the surrounding decoration on-site.
Installation is a simple and straightforward process that requires only two timber battens, which are fixed to the wall or floor, allowing the pipe boxings to then be secured to the battens with screws and white caps.
A full range of dedicated accessories is available, which includes internal and external corners, joint covers and stop ends. Screws, caps and mastic sealant can also be purchased when ordering products to further simplify installation.
Our two-sided ‘L’ shaped pipe boxings are manufactured from moisture resistant FSC® certified MDF. By using materials from sustainable and managed sources our products are not only covered by Forest Stewardship Council certification, but they also help specifiers, contractors and buyers comply readily with their own sustainable procurement policies.
| Depth | Width | |||||||||
| 50 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| 75 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| 100 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| 125 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |
| 150 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | ||
| 200 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |||
| 250 | 250 | 300 | 350 | 400 | 450 | 500 | ||||
| 300 | 300 | 350 | 400 | 450 | 500 | |||||
‘L’ Shaped Joint Cover
Stop End
Battens
Fixing Screws
Screw Caps & Washers
